UHF Fabric Laundry Tags | RFID Linen Label
All RFID products shown on this page are designed and manufactured by XIUCHENG RFID.
We focus on controlled materials, stable production processes, and consistent quality
to support long-term use in identification, access control, and tracking applications.
— Copyright by XIUCHENG RFID
Product Details

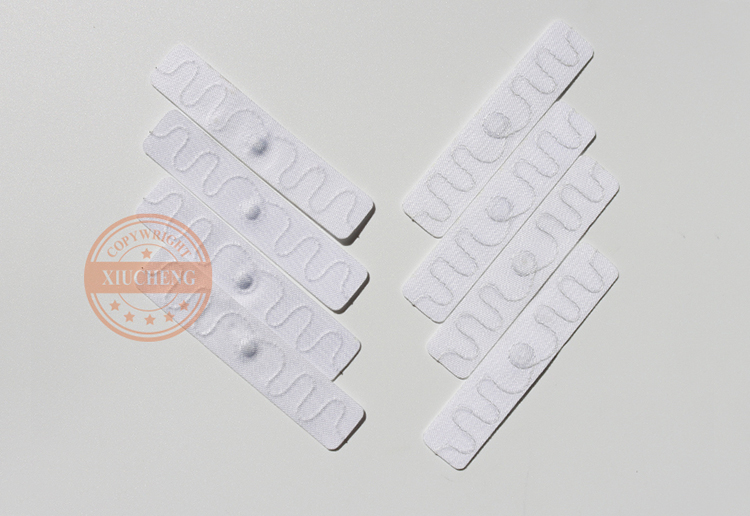

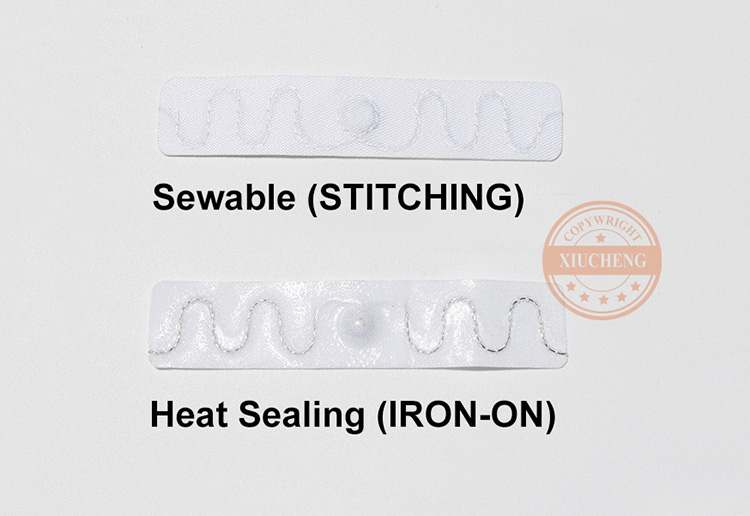

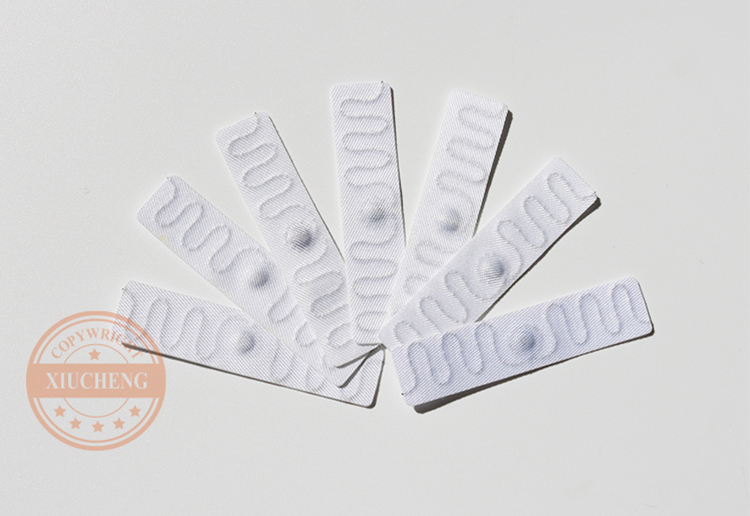

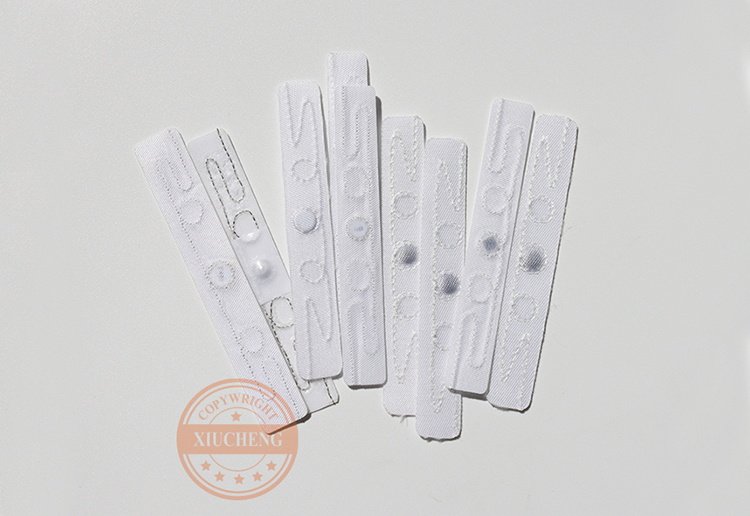

UHF FABRIC LAUNDRY TAGS
TEXTILE/LINEN LAUNDRY TAGS
- Size: 55 × 12mm, 70 × 10mm, 70 × 15mm, 87 × 17mm, or Customized
- Chip: NXP UCODE 8, NXP UCODE 9
- Operating Frequency: 865 – 928 MHz
- Tag Material: Polyester
- Tag Warranty: First of 200 wash cycles or 3 years from ship date
- Read Distance: Up to 3 meters (up to 9 feet), have to test it with your reader
- Storage Temperature: -40℃ to +120℃ (-40℉ to +248℉)
- Washing Cycle: Washing: +90℃ (+194℉), 60 minutes, Dry: +180℃ (+356℉), 3 minutes (dehydration press: 35 bars), Ironer: +195℃ (+383℉) 30 seconds < 18 bars, Water Extractor: 60 bars, 80 seconds, Autoclave: Air removal: +100℃ (+212℉), 5 minutes, 0.1 bar, Drying: +45℃ (+113℉), 15 minutes, 0.2 bar, Sterilizing: +134℃ (+273℉), 20 minutes, 3.25 bar
- Chemical Resistance: All Chemicals common to the washing process
- Click to download the product specifications PDF file
