PPS RFID laundry tag
PPS RFID Laundry Tags are rugged, high-temperature resistant RFID tags designed for industrial laundry and textile tracking applications. Made from durable PPS (Polyphenylene Sulfide) material and embedded with reliable RFID chips, these tags deliver stable identification performance in harsh laundry environments.
Engineered to withstand repeated washing, high-pressure extraction, high-temperature drying, and chemical exposure, PPS RFID laundry tags are ideal for tracking hotel linens, hospital textiles, uniforms, and rental garments throughout the entire laundry process. Their compact button-style design allows them to be easily sewn into fabrics, ensuring secure attachment and long service life.
As a professional RFID manufacturer, we offer bulk production and full OEM customization of PPS RFID Laundry Tags. Custom options include chip type selection, tag size, frequency, UID or EPC encoding, and packaging. With factory-direct pricing, strict quality control, and scalable manufacturing capacity, our PPS RFID laundry tags provide a reliable and cost-effective solution for commercial laundries, textile rental companies, hospitals, and hospitality businesses implementing RFID-based laundry management systems.
| Specification | Details |
|---|---|
| Product Name | NTAG213 PPS Button Laundry Tag |

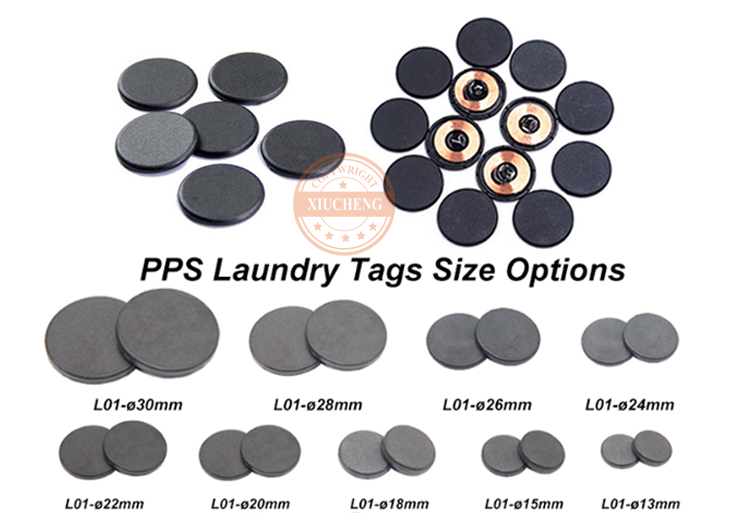

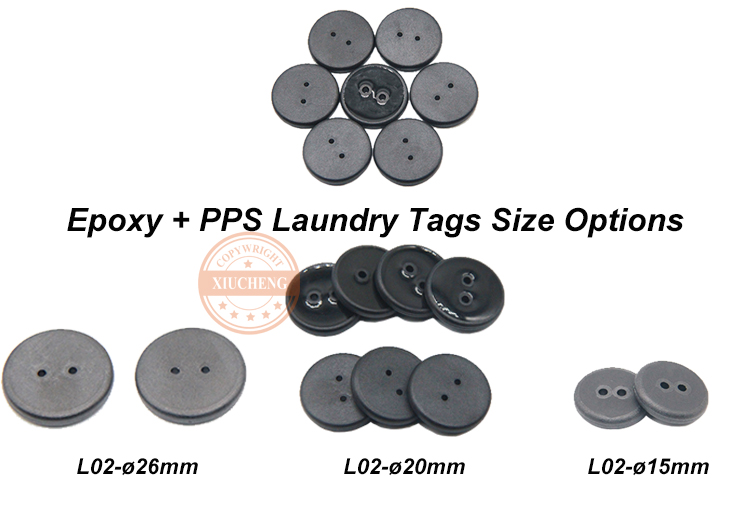

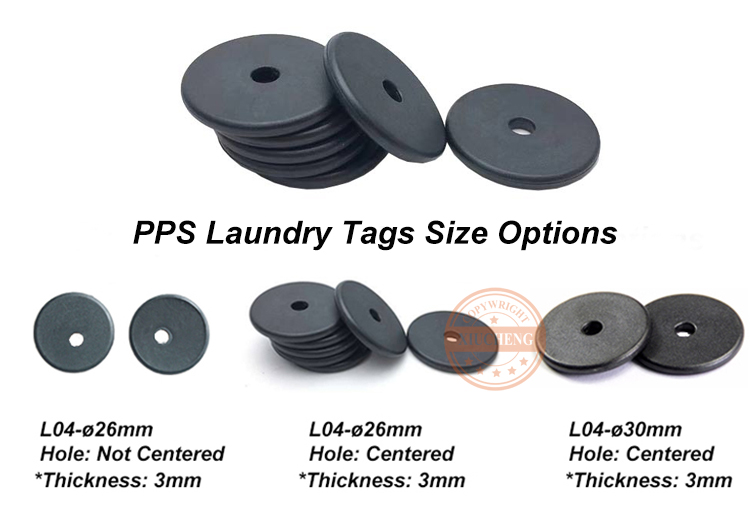

| Available Dimensions | Φ30 mm Φ28 mm Φ26 mm Φ24 mm Φ22 mm Φ20 mm Φ18 mm Φ15 mm Φ13 mm |
| Thickness | 3 mm |
| Material | PPS housing on both sides |
| Chip Options | TK4100 EM4200 EM4305 T5577 Fudan 1K MIFARE S50 / S70 NTAG213 / 215 / 216 NXP UCODE 9 Other compatible RFID chips available |
| Activation Field Strength (25°C) | Read/write activation field strength: 112 dBμA/m / 115 dBμA/m (typical) |
| Programming Cycles | Up to 100,000 cycles (at 25°C) |
| Data Retention | More than 10 years at 55°C |
| Tag Identification Speed | Up to 50 tags per second (depends on reader and antenna performance) |
| Protection Rating | IP68 waterproof standard Water pressure: 45 bar for 10 hours |
| Operating Temperature | -25°C to +90°C |
| Mechanical Strength | Axial compression strength: 1000 N Radial compression strength: 500 N |
| Chemical Resistance | Resistant to chemicals commonly used in laundry and dry-cleaning processes |
| Applications | Hotel linen management Industrial textile tracking Uniform identification Canvas and pallet tagging Workwear and garment management |
Product Overview
The PPS RFID laundry tag is an industrial-grade RFID transponder designed for textile identification and lifecycle tracking in commercial laundry environments.
Encapsulated in high-performance PPS material, the tag maintains stable RF performance under repeated washing, drying, and chemical exposure.
Key Advantages
- Designed specifically for industrial laundry and textile circulation systems
- PPS encapsulation provides excellent heat, pressure, and chemical resistance
- Supports LF, HF, and UHF RFID systems, ensuring broad compatibility
- Compact size options for flexible textile integration
- Long service life with consistent read reliability
Application Scenarios
This PPS RFID laundry tag is commonly used in:
- Hotel and hospitality linen management
- Hospital and healthcare textile tracking
- Industrial uniform and workwear management
- Laundry logistics and asset circulation
- Rental textile inventory control
It enables automated counting, loss reduction, and operational efficiency across the textile lifecycle.
Why PPS Material Matters
Compared with silicone or fabric-based RFID laundry tags, PPS material offers:
- Higher mechanical stability
- Better resistance to aggressive washing chemicals
- Lower failure rate over long-term use
- More consistent RF behavior after repeated cycles
This makes PPS RFID laundry tags particularly suitable for high-volume, high-reliability laundry operations.
